32mm 4 Way Lifting Chains , ISO1835 4 Point Lifting Chain

  • 1
  • 2

Brand Name : Anfeng / AF

Model Number : /

Certification : CE, GS, ISO

Place of Origin : China

MOQ : 500 pcs

Price : Call or Email for quote

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : Within 45 days after order confirmation

Packaging Details : Carton + pallet, wooden box, or custom

Key word : Four-leg Grade 80 Alloy Steel Chain Sling, industrial Heavy Lift Chain Sling, for overhead lifting, chain sling assembly

Material : High strength alloy steel

Strength of the chain : Grade 80

Chain accessory : With Master Link Assemblies and Self-Locking Hooks

Finish : Chain hot dip galvanized and accessories painted yellow, red, orange or customized

Standard : ISO1835, ISO3077, EN818-2

Length : Customized

Application : Overhead lifting application, industrial lifting, heavy lift

Packaging : Carton + pallet, wooden box, or custom

OEM or ODM services : Yes, upon request

Contact Now

32mm Four-leg Grade 80 Alloy Steel Chain Sling, with Master Link Assembly and Self-Locking Hooks, Chain Sling Assembly, for overhead lifting and industrial heavy lifting, high strength

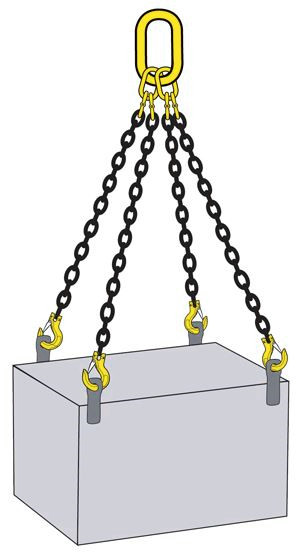

Four-leg Grade 80 Lifting Chain Sling (assembly)
Product Overview
Our Four-leg Grade 80 chain slings are available in various size, length and chain attachments, with the working load limit depending on the angle of inclination and the load symmetry.
All of our Grade 80 chains and chain components are manufactured by heat treated alloy steel, and meet the requirements of ISO1835, ISO3077 and EN818-2 standards. These chains and components are designed to be high strength, rugged, versatile, low weight.
The chain slings generally consist of a large Master Link at top with a shortening Clevis Grab Hook for leg length adjustment joined with a Chain Connector, and a Clevis Self-Locking Hook fitted to the bottom of the chain leg for increased safety.
These lifting chains are available in models of up to four individual chains per sling. This will allow for more attachment points and therefore, higher levels of control. Additionally, we can also fit shortening grab hooks to each leg to adjust the chain length.
All our chain slings are proof tested to twice the WLL. Both the chains and components have distinctive markings for tracibility. They are suited for all applications with standard crane hooks and for general lifting purposes.
Main features:
- Alloy steel
- Heat treated and hot dip galvanized
- Minimum proof test load is 2 times of the working load limit.
- Grade 80 chain accessories
32mm 4 Way Lifting Chains , ISO1835 4 Point Lifting Chain 32mm 4 Way Lifting Chains , ISO1835 4 Point Lifting Chain
Specification
Single-leg (tons) Two-leg (tons) Three-leg (tons) Four-leg (tons) Endless

Extra weight per meter

(kg/m)
0° 0-45° ＞45-60° 0-45° ＞45-60° 0-45° ＞45-60° 0°

Dia.

(mm)

 Load factor = 1 Load factor = 1.4 Load factor = 1 Load factor = 2.1 Load factor = 1.5 Load factor = 2.1 Load factor = 1.5 Load factor = 1.6
φ 6mm 1.12 1.57 1.12 2.35 1.68 2.35 1.68 1.79 0.80
φ 8mm 2.00 2.80 2.00 4.20 3.00 4.20 3.00 3.20 1.40
φ 10mm 3.15 4.41 3.15 6.62 4.73 6.62 4.73 5.04 2.20
φ 13mm 5.30 7.42 5.30 11.13 7.95 11.13 7.95 8.48 3.80
φ 16mm 8.00 11.20 8.00 16.80 12.00 16.80 12.00 12.80 5.70
φ 18mm 10.00 14.00 10.00 21.00 15.00 21.00 15.00 16.00 7.30
φ 20mm 12.50 17.50 12.50 26.25 18.75 26.25 18.75 20.00 9.00
φ 22mm 15.00 21.00 15.00 31.50 22.50 31.50 22.50 24.00 10.90
φ 26mm 21.20 29.68 21.20 44.52 31.80 44.52 31.80 33.92 15.20
φ 32mm 31.50 44.10 31.50 66.15 47.25 66.15 47.25 50.40 23.00
About Anfeng Lifting & Rigging
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
